DV Mark

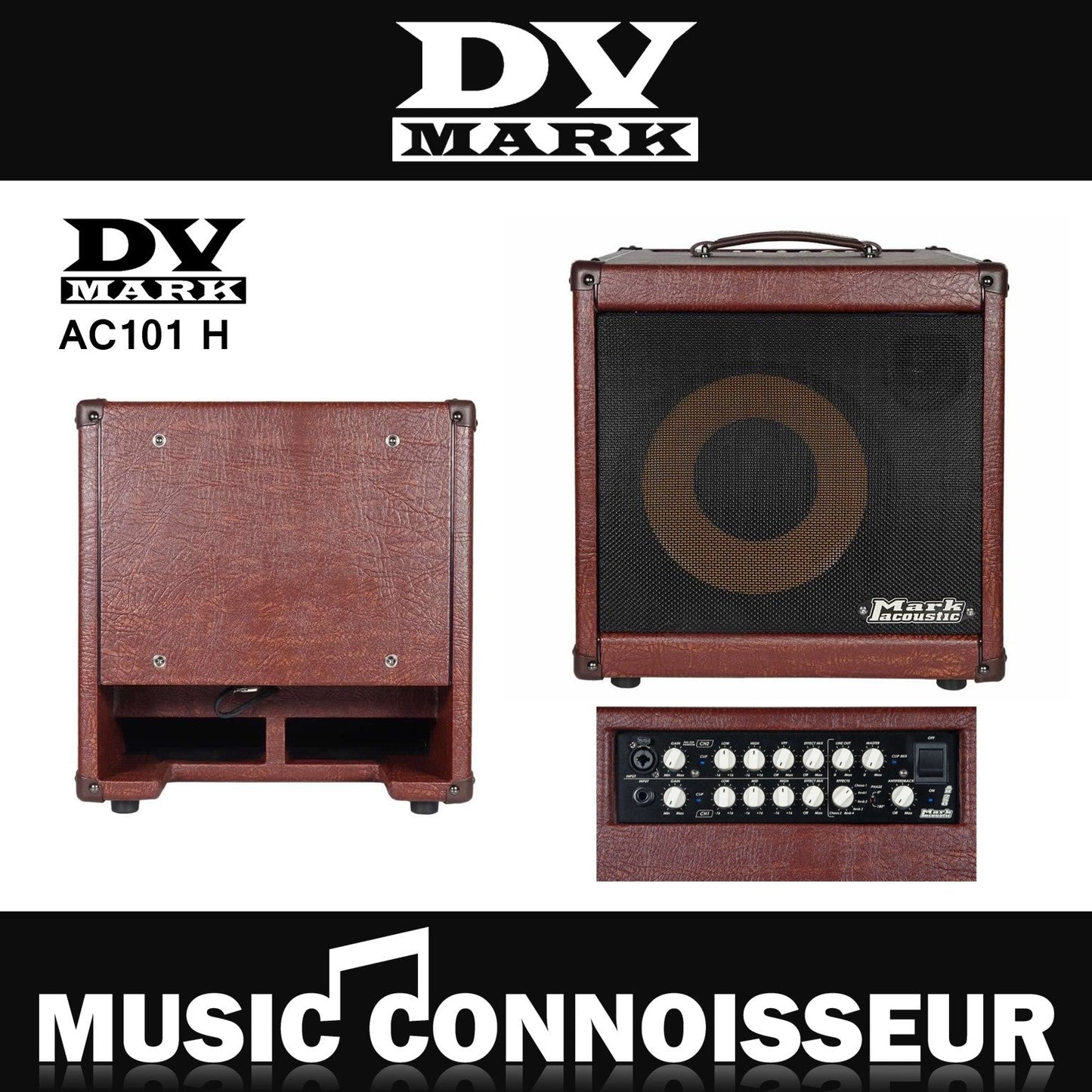

DV Mark AC101 H Acoustic Guitar Amp

DV Mark AC101 H Acoustic Guitar Amp

Regular price RM0.00 MYR
Regular price Sale price RM0.00 MYR
Sale Sold out

TECHNICAL FEATURES

INPUTS
CH 1: Impedance 500 Kohm/  Maximum Vpp: 10
CH 2: Impedance  500 Kohm/  Maximum Vpp: 10
BALANCED CH2: Impedance  500 Kohm/  Maximum Vpp: 20
RETURN: unbalanced, Impedance 33  Kohm// Max 10Vpp

CONTROLS CH1
GAIN: -45dB ¸28 dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level ±16 dB (40 Hz)
MID:  Level ±16 dB (600Hz)
HIGH: Level ±16 dB min  (6 KHz)

CONTROLS CH2
GAIN: -43dB ¸ 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level ±16 dB  (60 Hz)
HIGH: Level ±16 dB min at (5 KHz)
OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz
OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp
SPEAKER

1×10″

TWEETER

new 1″ voice coil tweeter

BASS PORT

rear

IMPEDANCE

8 ohms

SENSITIVITY

101 dB SPL

SPEAKER POWER HANDLING

200W RMS (AES Standard)

AMP OUTPUT POWER

(analog) 250W @ 4 ohm / 150W @ 8 ohm

FREQUENCY RESPONSE

45 Hz to 20 kHz

CROSSOVER FREQUENCY

3.5 kHz
